Send Shopify Order Confirmation on WhatsApp (Without Expensive Apps)

A common Shopify requirement is: as soon as an order is placed, send an order confirmation on WhatsApp.

Many Shopify apps can do this — but they often come with monthly subscription plans and bundled features you may not need.

This guide shows a lean, budget-friendly, and production-ready approach we implemented for a client using:

• Shopify Webhooks (trigger on order creation)
• AWS API Gateway (public endpoint for Shopify to call)
• AWS Lambda (serverless compute to process the payload)
• Wati WhatsApp API (official WhatsApp Business messaging provider)

You’ll get a setup that is:

• Simple (one webhook → one message)
• Cheap to run (pay-per-use serverless)
• Flexible (you control template + payload mapping)

Architecture (How It Works)

1. A customer places an order on Shopify
2. Shopify fires an Orders/Create webhook (HTTP POST JSON)
3. API Gateway receives the webhook request
4. Lambda parses the payload, extracts:
   • Customer name
   • Phone number
   • Order number
   • Order status URL
5. Lambda calls Wati’s API to send a WhatsApp template message

Prerequisites

• Shopify store admin access
• AWS account (API Gateway + Lambda)
• Wati account with WhatsApp Business number approved
• A WhatsApp template created and approved in Wati

Step 1: Create an Order Webhook in Shopify

In Shopify Admin:

Settings → Notifications → Webhooks → Create webhook

Suggested configuration:

• Event: Order creation
• Format: JSON
• URL: Your API Gateway endpoint (we create it in Step 2)
• Webhook API version: use the latest stable version

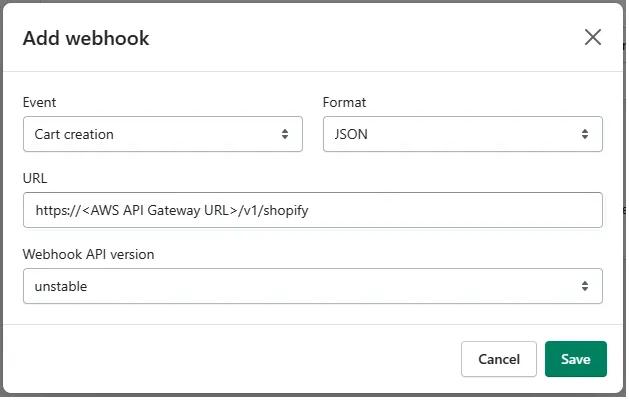

Screenshot: Shopify webhook setup

Tip: Use a dedicated endpoint for this webhook (don’t reuse an endpoint for multiple webhook types unless you’re intentionally routing).

Step 2: Create the AWS Lambda Function

You can implement Lambda in Node.js, Python, Java, Go, C#, etc.

Below is a Java-style implementation outline (similar to what we used) showing the key ideas:

Environment variables

Store secrets/config in Lambda environment variables:

• whatsappTemplateName
• watiEndpointURL
• bearerToken

Lambda handler (Java example)

Copy
1@Override
2public void handleRequest(InputStream input, OutputStream output, Context context) throws IOException {
3  LambdaLogger logger = context.getLogger();
4
5  String waTemplateName = System.getenv("whatsappTemplateName");
6  String watiEndpointURL = System.getenv("watiEndpointURL");
7  String bearerToken = System.getenv("bearerToken");
8
9  String orderJson = new String(input.readAllBytes(), StandardCharsets.UTF_8);
10
11  if(StringUtils.isNullOrEmpty(watiEndpointURL) ||
12     StringUtils.isNullOrEmpty(waTemplateName) ||
13     StringUtils.isNullOrEmpty(bearerToken)) {
14    logger.log("Environment variable missing.");
15    return;
16  }
17
18  JsonNode data = mapper.readTree(orderJson);
19
20  String customerName = data.get("shipping_address").get("name").asText();
21  String orderNumber  = data.get("order_number").asText();
22  String phoneNumber  = data.get("shipping_address").get("phone").asText();
23  String orderURL     = data.get("order_status_url").asText();
24
25  // Optional: remove authenticate token from URL (client requirement)
26  if(orderURL != null && orderURL.contains("authenticate")) {
27    orderURL = orderURL.substring(0, orderURL.indexOf("authenticate") - 1);
28  }
29
30  logger.log("New Shopify Order received for " + customerName + " order #" + orderNumber);
31
32  // Build Wati payload with template params
33  Receiver receiver = new Receiver();
34  receiver.setWhatsappNumber(phoneNumber.replaceAll("[+]", ""));
35
36  List<CustomParam> params = new ArrayList<>();
37  params.add(new CustomParam("customername", customerName));
38  params.add(new CustomParam("ordernumber", orderNumber));
39  params.add(new CustomParam("orderurl", orderURL));
40  receiver.setCustomParams(params);
41
42  GDWhatsappModel payloadData = new GDWhatsappModel();
43  payloadData.setTemplateName(waTemplateName);
44  payloadData.setBroadcastName(customerName + "-" + orderNumber);
45  payloadData.setReceivers(Arrays.asList(receiver));
46
47  String payload = mapper.writeValueAsString(payloadData);
48
49  HttpRequest request = HttpRequest.newBuilder()
50    .uri(new URI(watiEndpointURL))
51    .header("Content-Type", "application/json;charset=UTF-8")
52    .header("Authorization", "Bearer " + bearerToken)
53    .POST(HttpRequest.BodyPublishers.ofString(payload))
54    .build();
55
56  HttpResponse<String> response = HttpClient.newBuilder()
57    .build()
58    .send(request, BodyHandlers.ofString());
59
60  if(response.statusCode() == 200) {
61    logger.log("WhatsApp sent to " + phoneNumber + " for order #" + orderNumber);
62  } else {
63    logger.log("WhatsApp failed: " + response.body());
64  }
65}

A more production-ready checklist

• Validate the webhook payload fields exist (shipping address may be missing)
• Normalize phone numbers (E.164 format recommended)
• Handle missing phone numbers (skip sending, log)
• Add timeouts + retries when calling Wati
• Log correlation id (Shopify webhook id) for tracing

Step 3: Expose Lambda via API Gateway (Required)

Shopify webhooks send an HTTP POST. Lambda alone needs a public HTTP endpoint.

Use API Gateway REST API with Lambda proxy integration.

High level steps:

1. Create API Gateway
2. Create a POST route (e.g., /shopify/order-created)
3. Enable Lambda proxy integration
4. Deploy stage (e.g., prod)
5. Copy the invoke URL and paste it into Shopify webhook configuration

Step 4: Deploy & Test

Test via real Shopify order

Create a test order in Shopify and wait for the webhook to fire.

If everything is correct, WhatsApp should arrive within seconds.

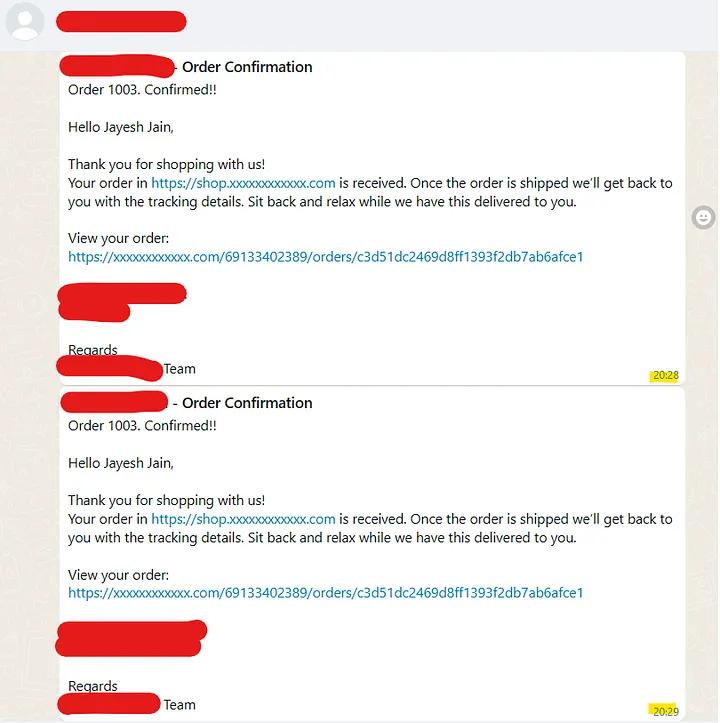

Screenshot: WhatsApp order confirmation (example output)

Where to debug

• API Gateway execution logs
• Lambda CloudWatch logs
• Wati API response body

Important: Shopify Webhook Retry Policy (Why You May Get Duplicate Messages)

If Shopify does not receive a timely 200 OK, it retries the webhook.

In our case, the webhook executed twice and the client received two WhatsApp messages.

Root cause: the first Lambda execution took too long (cold start), and Shopify retried.

Fix 1: Reduce Lambda cold start

Recommended approaches:

• Provisioned Concurrency (best for consistent low-latency)
• Keep-warm schedule (cheap workaround: CloudWatch rule pings the function)
• Keep the handler lightweight (reuse HTTP client, avoid heavy init)

Fix 2: Make sending idempotent (best practice)

Even with performance improvements, production systems should be idempotent.

Simple options:

• Use Shopify webhook id as a unique key
• Store processed ids in DynamoDB with TTL (e.g., 24 hours)
• If the id exists → skip sending

This guarantees you never send duplicates even if Shopify retries.

Security Best Practices

• Verify Shopify webhook signature (HMAC) to prevent spoofed requests
• Store Wati token in AWS Secrets Manager (not plaintext env) if required by policy
• Restrict API Gateway (WAF allowlist, IP allowlist if possible)

Cost & ROI

This approach is typically much cheaper than monthly Shopify apps when you only need:

• One message type (order confirmation)
• Low/medium order volume

You pay for:

• Lambda invocations + duration
• API Gateway requests
• Wati WhatsApp messages (per conversation / template)

Conclusion

Using Shopify Webhooks + AWS Lambda + Wati, you can send Shopify order confirmation on WhatsApp quickly, affordably, and with full control.

If you want, we can extend the same setup to:

• Fulfillment shipped notifications
• Delivery updates
• COD confirmations
• Abandoned cart reminders

Next Steps

1. Create the webhook in Shopify
2. Create Lambda + API Gateway endpoint
3. Configure Wati template + token
4. Add idempotency + cold start mitigation for production
